Retrochallenge 2015 – Here we go.

We’re four days into retro challenge and I’ve finally got started.

My plan is to do “something programmy” on a Sharp MZ-700. I’ve set up my stall and now for the programming. I’ve not used C on a Z80 before nor anything beyond “Hello World” on an MZ-700 so I need to find out some basics.

First I’m going to output a character grid using memory mapping (rather than standard output – printf) because I get further, memory mapped screen access will be needed.

I’m using Z88DK to write in and MZ-700 emulator under DOSBOX to test. I’ll try it on a real MZ-700 before I’ve finished.

First, some code…

/*
 * charmap.c
 *
 * A simple memory mapped display of the character and colour map on
 *  the Sharp MZ-700.
 *
 * Andy Collins. July 4th 2015.
 *
 */

#include <stdio.h>
#include <stdint.h>
#include <string.h>

void main(void)
{
  u8_t  *screenRam = 0xD000;         // Start of screen memory. Top left.
  u8_t  *colourRam = 0xD800;         // Start of colour attribute memory. Top left.
  u8_t  xLoop = 0;
  u8_t  yLoop = 0;
  u8_t  currentChar = 0;
  const u8_t myChar = 0x41;

// Output a square with the complete character set.
  screenRam += 4 * 40 + 4;         // Move top left in a bit
  for(xLoop = 0; xLoop < 16; xLoop++)
  {
    for(yLoop = 0; yLoop < 16; yLoop++)
    {
      *screenRam++ = currentChar++;
    }

    screenRam += 24;
  }

// Now a square of the colour combinations
  screenRam = 0xD000 + 4 * 40 + 20;  // Start of colour square in screen RAM
  colourRam += 4 * 40 + 20;         // Move top left in a bit
  for(xLoop = 0; xLoop < 16; xLoop++)
  {
    for(yLoop = 0; yLoop < 16; yLoop++)
    {
      *colourRam++ = currentChar++;
      *screenRam++ = myChar;
    }

    colourRam += 24;
    screenRam += 24;
  }

  while(1)
  {
  }
}

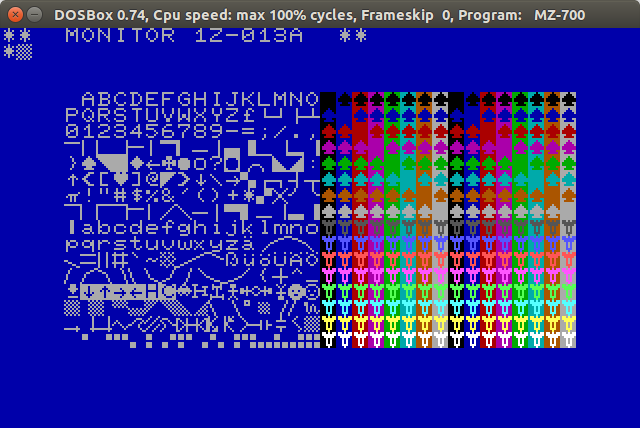

And a screenshot…

Screenshot from 2015-07-04 11:44:43Tadaa :-).
